Vascular
50W focused to a 0.2–0.5mm beam — vessels, not surrounding skin.
980nm sits at the absorption peak for the porphyrin in vascular cells, so the energy goes where it is aimed. The handpiece focuses the beam to between 0.2 and 0.5mm, concentrating it on the vessel instead of scattering heat into the skin around it — the failure mode that gives older vascular lasers their reputation for redness and burns. Most lesions clear in one or two sessions, and the collagen response tends to improve skin density in the treated area as a secondary effect.
Suitability depends on patient presentation, skin type and your scope of practice. We'll walk through indications with you before quoting.
| Wavelength | 980nm diode |
|---|---|
| Output power | 50W maximum |
| Beam diameter | 0.2–0.5mm focused |
| Pulse duration | 20–100ms adjustable |
| Pulse delay | 180–900ms adjustable |
| Cooling | Air |
| Interface | 15-inch colour touchscreen |
| Dimensions | 400 × 320 × 350 mm |
| Typical course | 1–2 sessions |
Full technical specification sheet, lead time and total landed cost are supplied in writing with every quote.
Buying from us
Anyone can ship a machine. The difference shows up in week two, when you need a part, a protocol, or a person who answers.
Freight, duties and customs clearance are included in the quoted landed cost — the number you see is the number you pay.

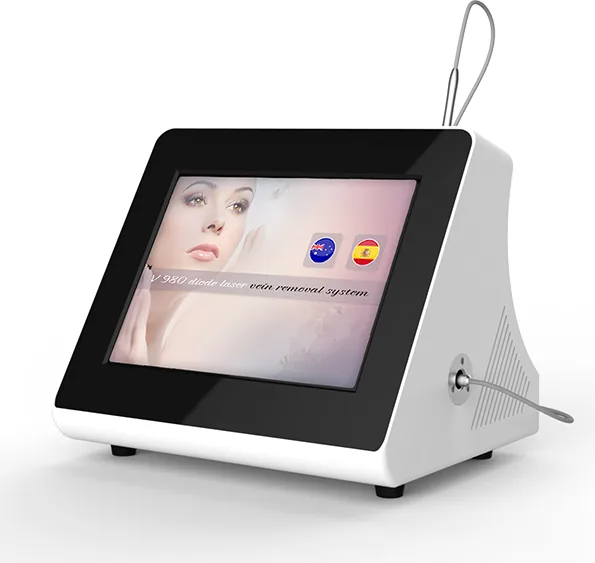

980nm Diode Vascular Removal
Specification sheet, clearance documentation, lead time, freight and total landed cost — nothing buried.
